Pumping Equipment

For decades Carlisle Energy Group has taken pride in providing reliable pumping solutions & services to its clients. Please view the gallery below to see what our equipment is capable of:

High Pressure Pumps

GD 600 Well Service Pump

Length: 17′ Width: 7’6″ Height: 10′

Weight: 30,000 lbs.

3″ or 5″ Configurations

3″ Pump

0-15,000 PSI Operating Pressure

Up to 5.8 Barrels per Minute

5″ Pump

0-5,000 PSI Operating Pressure

Up to 16 Barrels per Minute

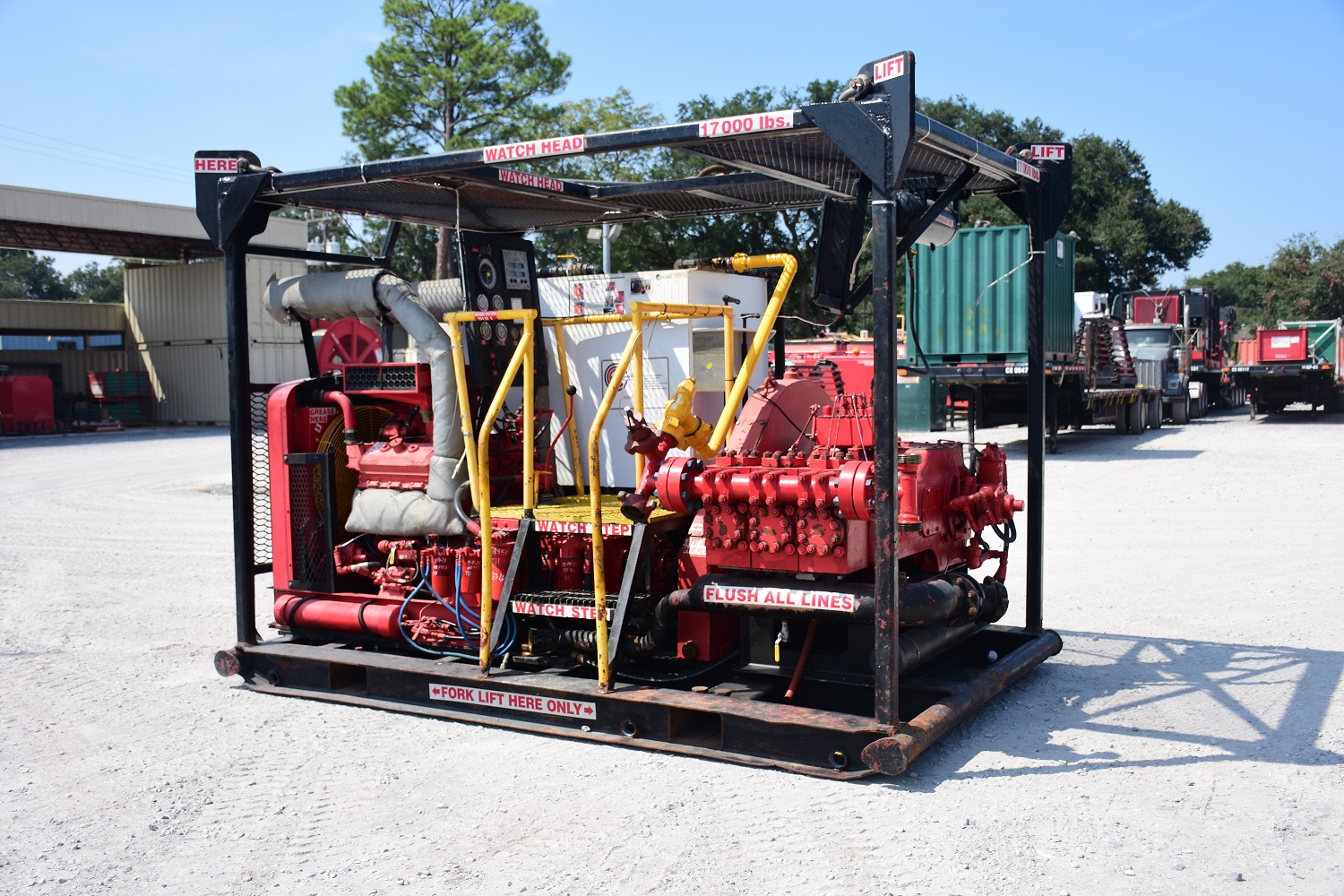

TEE Pump-Single Skid

Length: 12’6″ Width: 7’8″ Height: 8’10”

Weight: 17,000 lbs.

2.25″, 3″, or 4″ Configurations

2.25″

0-10,000 PSI Operating Pressure

Up to 1.8 Barrels per Minute

3″

0-6,500 PSI Operating Pressure

Up to 3.25 Barrels per Minute

4″

0-3,500 PSI Operating Pressure

Up to 5.8 Barrels per Minute

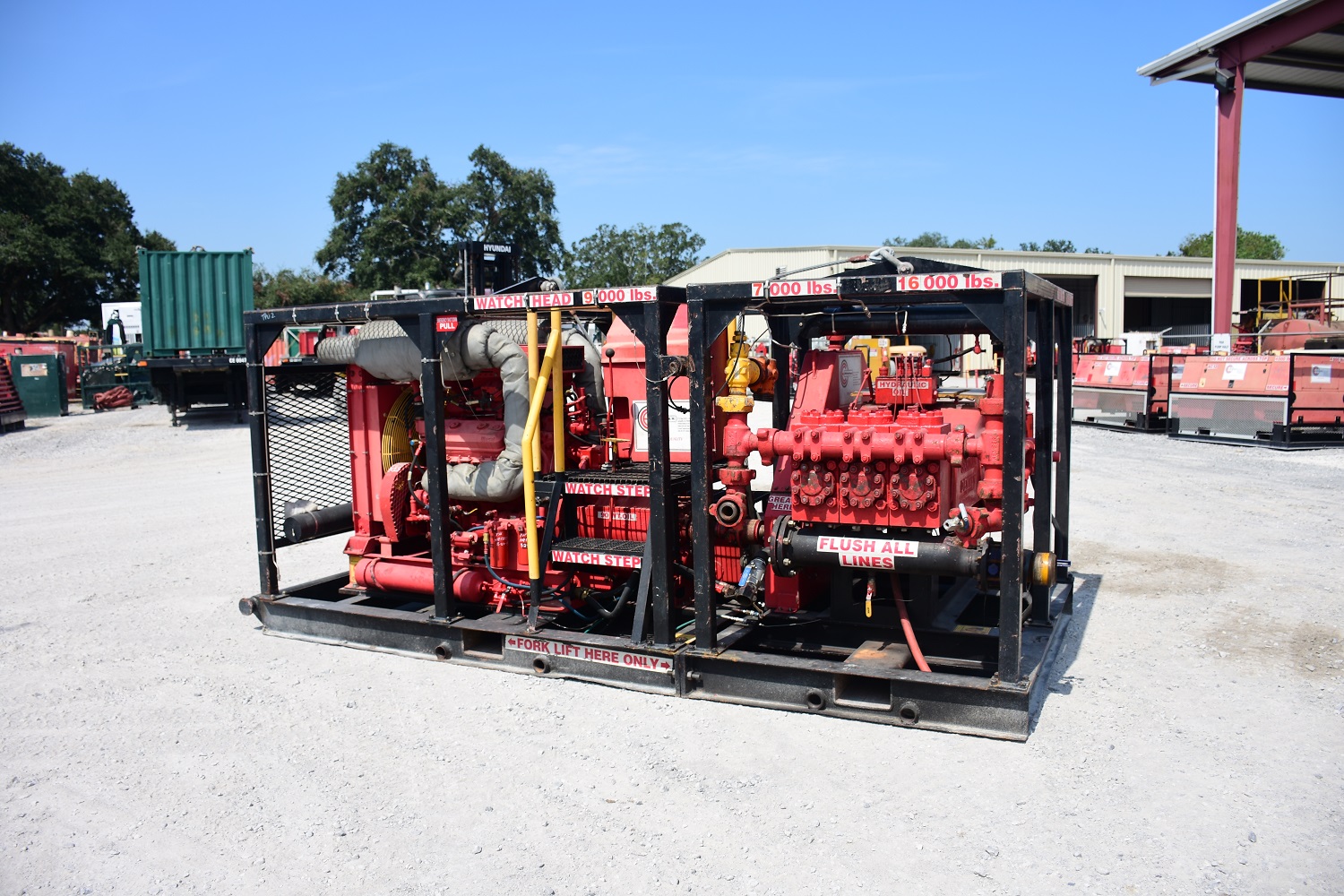

Tee Pump-Split Skid

Length: 14’3″ Width: 7′” Height: 6’6″

Total Weight: 16,000 lbs.

Engine: 9,000 lbs. Pump: 7,000 lbs.

2.25″, 3″, or 4″ Configurations

2.25″

0-10,000 PSI Operating Pressure

Up to 1.8 Barrels per Minute

3″

0-6,500 PSI Operating Pressure

Up to 3.25 Barrels per Minute

4″

0-3,500 PSI Operating Pressure

Up to 5.8 Barrels per Minute

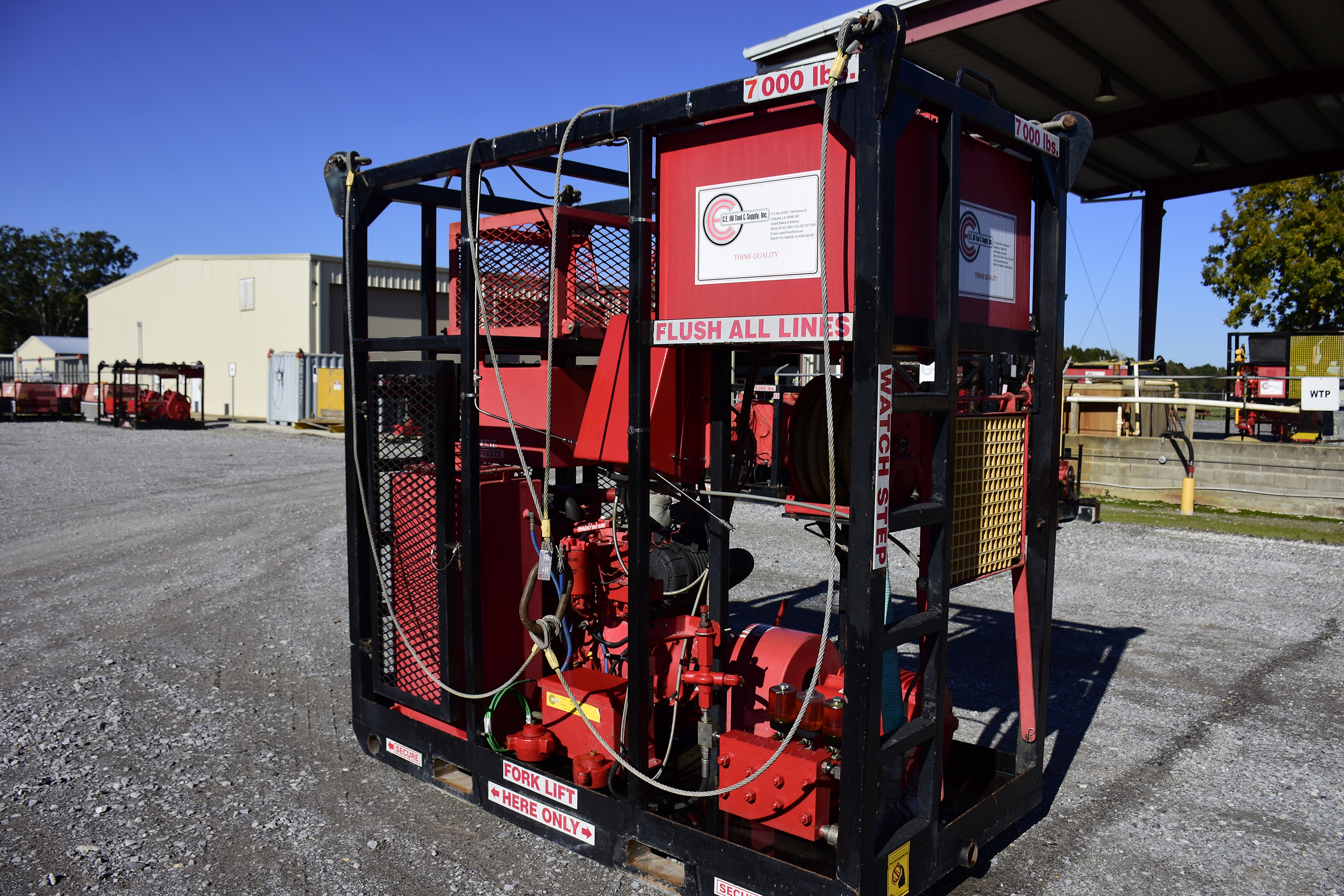

Wireline Test Pump

Length: 8′ Width: 4′ Height: 8′

Weight: 7,000 lbs.

3/4″ Pump

0-17,500 PSI Operating Pressure

Up to 11.88 Gallons per Minute

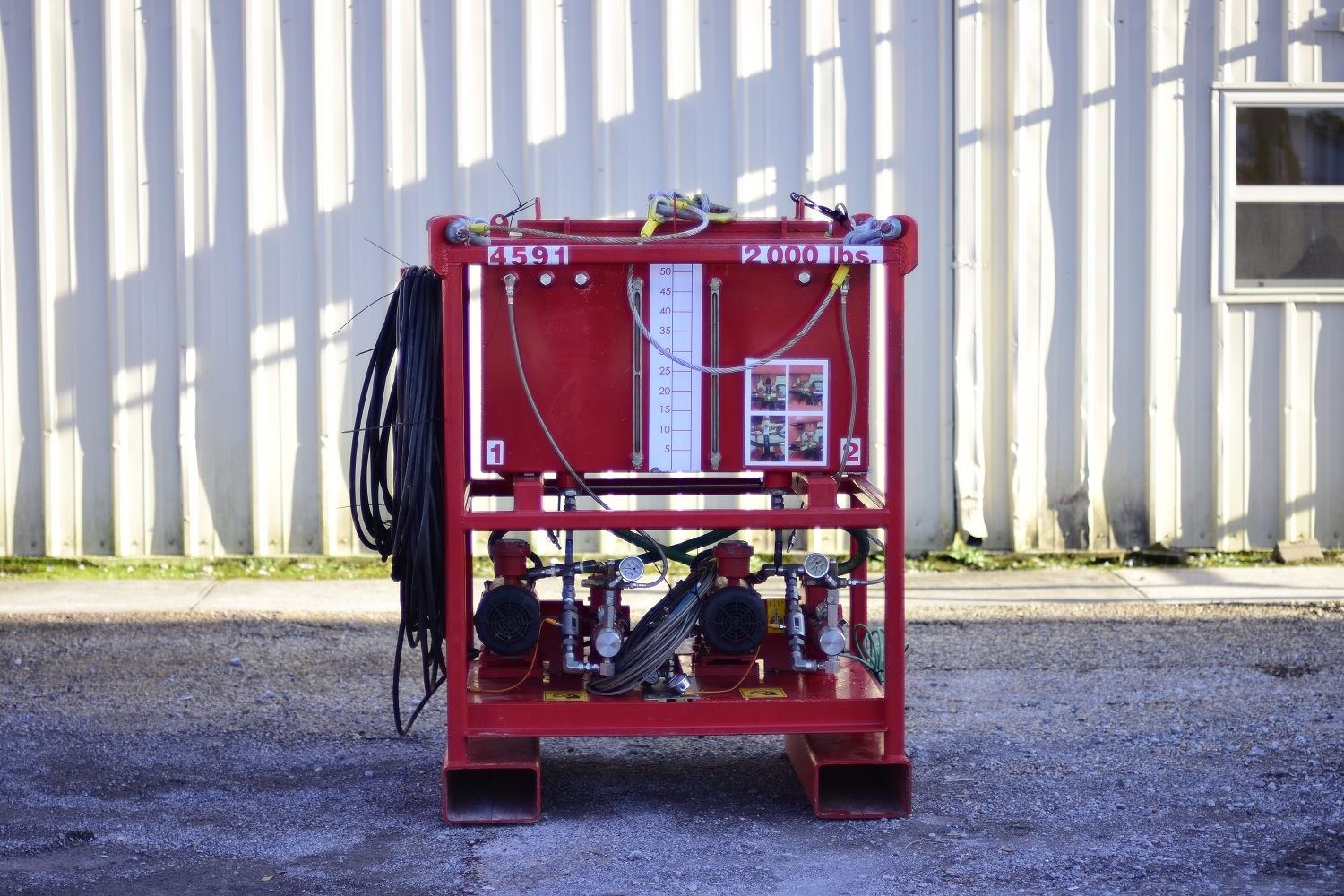

Chemical Injection Pump

Dual Pump Skid

Length: 4’2″ Width: 3’3″ Height: 5’6″

Weight: 2,000 lbs.

3/4″ Pump

0-3,500 PSI Operating Pressure

Up to 1/2 Gallon per Minute per Pump

Low Pressure Pumps

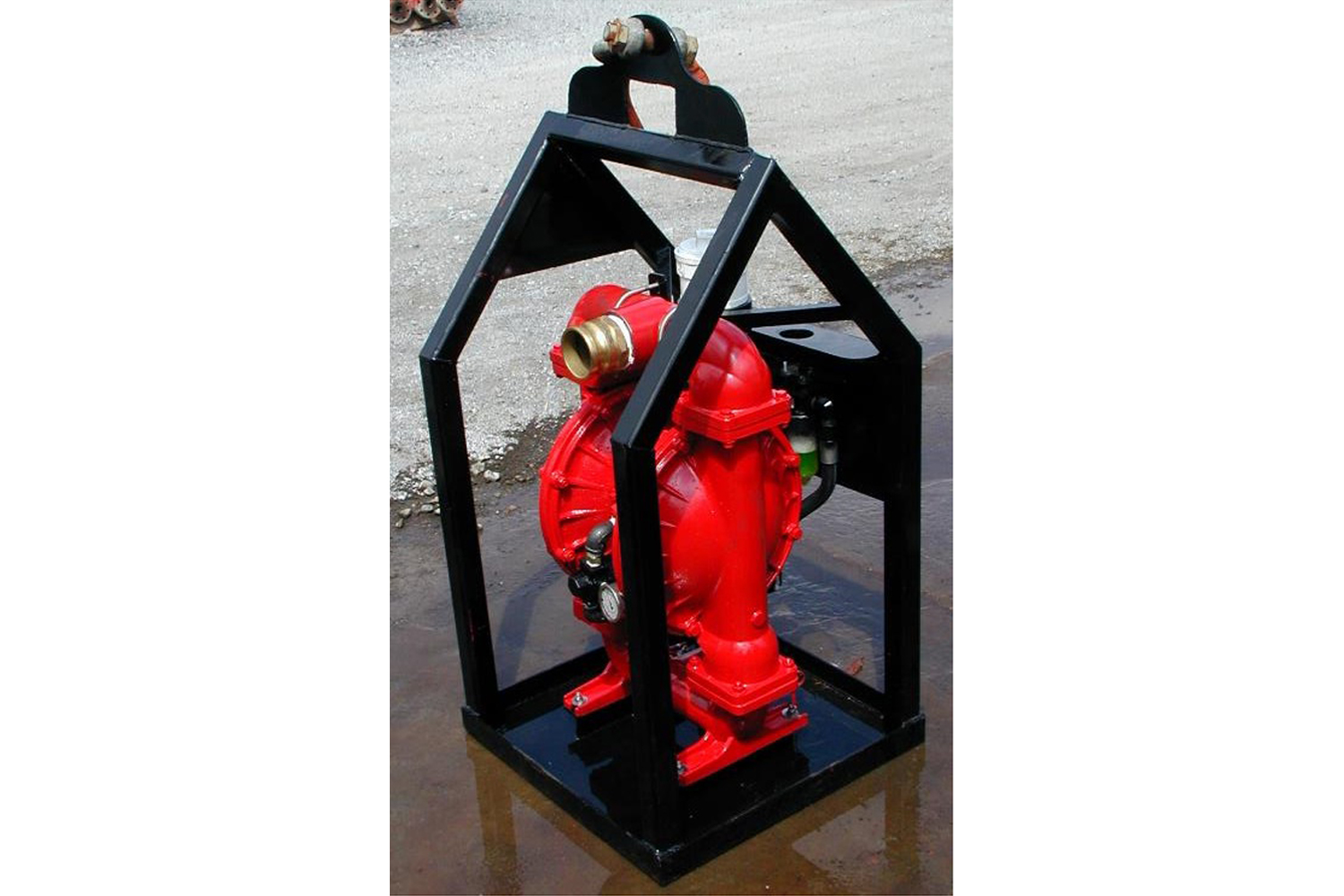

M-15 Diaphragm Pump

Length: 2′ Width: 2′ Height: 4’6″

Weight: 500 lbs.

20-100 PSI Operating Pressure

Up to 2.5 barrels per minute

Hydraulic Centrifugal Pump

Length: 5′ Width: 2′ Height:  3′

Weight: 1,000 lbs.

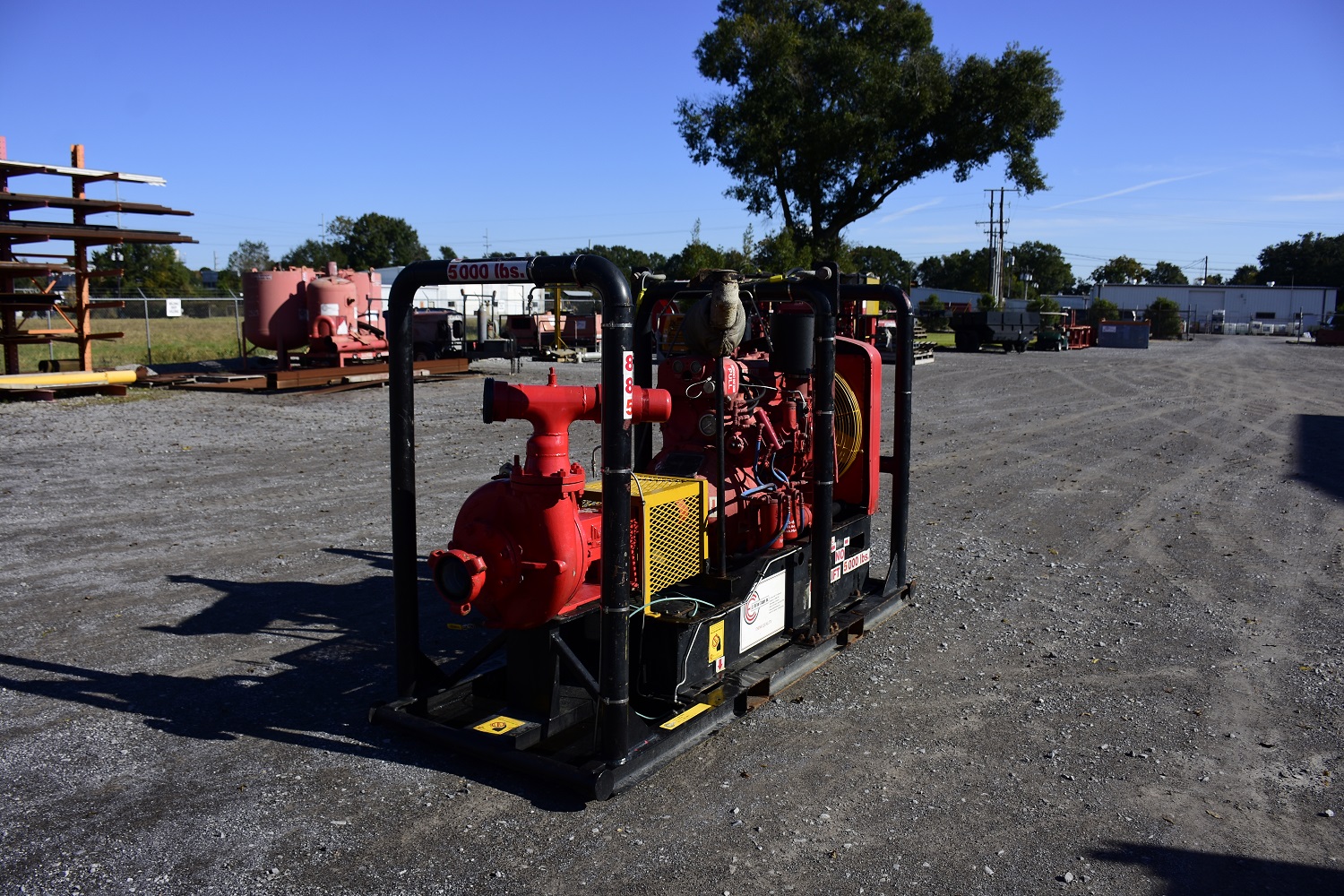

Diesel Centrifugal Pump

Length: 10′ Width: 3’6″ Height: 6′

Weight: 5,000 lbs.
